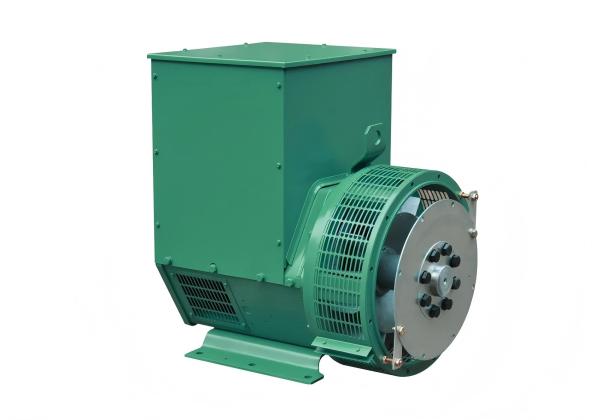

20-40KVA 4 Poles Brushless Alternator

Name: 2040KVA 4 Poles Brushless Alternator
Brand: Stone Power
Price: 1 USD

China 20-40KVA 4 Poles Brushless Alternator factory

Brand Name : Stone Power

Model Number : WHI184

Certification : GB755, EN ISO 12100, EN 12601, EN 60204-1

Place of Origin : China

MOQ : 1pc

Price : negotiate

Payment Terms : T/T;LC;DP etc

Supply Ability : 50000 per Year

Delivery Time : 25days

Packaging Details : Standard Export Packing

Application : Diesel Generator

Durability : Highly Durable And Long-lasting

Warranty : 1 Year Limited Warranty

Weight : Varies Depending On The Part

Color : Green/Silver

Type : WHI184

Compatibility : Compatible With Multiple Diesel Generator Brands

Contact Now

WHI184 Series---20-40KVA 4 Poles Brushless Alternator

As the largest 20-40KVA 4 Poles Brushless manufacturer in china, Stone Power sales quality 20-40KVA 4 Poles Brushless to customers all over the world.

● Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
● Single or double bearings are available, options for all kinds of adaptors and coupling disc
● 12-end reconnectable winding terminals to get different voltages
● Standard “H” insulation class
● Convenient installation and maintenance for rotated diodes and adaptor connected bolts
● Standard sealed maintenance-free bearings

Options

● Air filter
● Droop CT
● Winding RTD
● IP23 or IP22 Protection
● Anti-condensation heater
● Winding protection thermistor and relay
ALTERNATOR SPECIFICATION

VOLTAGE		4 POLES			4 POLES
VOLTAGE		50Hz 1500rpm			60Hz 1800rpm
STAR-SERIES		380	400	415	416	440	480
STAR-PARALLEL		190	200	208	208	220	240
TRIANGLE-SERIES		220	230	240	240	254	277
WHI184E	RATED CAPACITY (kVA)	22.5	22.5	22.5	28.8	28.8	30
	RATED POWER (kW)	18	18	18	23	23	24
	EFFICIENCY (％)	84.3	84.9	85.3	84.3	84.9	85.2
WHI184F	RATED CAPACITY (kVA)	27.5	27.5	27.5	34.4	34.4	35
	RATED POWER (kW)	22	22	22	27.5	27.5	28
	EFFICIENCY (％)	85.7	86.2	86.5	85.9	86.4	86.7
WHI184G	RATED CAPACITY (kVA)	31.3	31.3	31.3	37.5	37.5	37.5
	RATED POWER (kW)	25	25	25	30	30	30
	EFFICIENCY (％)	86.6	87.0	87.2	87.0	87.3	87.6
WHI184H	RATED CAPACITY (kVA)	37.5	37.5	37.5	44.3	46.9	46.9
	RATED POWER (kW)	30	30	30	35.4	37.5	37.5
	EFFICIENCY (％)	86.2	86.9	86.2	86.3	86.3	87.0

The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class (125℃)

Packing and Shipping:

Product Packaging:
Our Diesel Generator Spare Parts are carefully packaged to ensure they arrive in perfect condition. Each part is wrapped in protective material and placed in a sturdy box with ample cushioning to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping for our Diesel Generator Spare Parts. Orders are processed promptly and shipped out within 1-2 business days. We partner with reputable courier services to ensure timely delivery to our customers. Tracking information will be provided so you can monitor the progress of your shipment.
