1400-2200KVA 4 Poles Brushless Alternator

Brand Name : Stone Power

Model Number : WHI7

Certification : GB755, EN ISO 12100, EN 12601, EN 60204-1

Place of Origin : China

MOQ : 1pc

Price : negotiate

Payment Terms : T/T;LC;DP etc

Supply Ability : 50000 per Year

Delivery Time : 25days

Packaging Details : Standard Export Packing

Application : Diesel Generator

Durability : Highly Durable And Long-lasting

Warranty : 1 Year Limited Warranty

Weight : Varies Depending On The Part

Color : Green/Silver

Type : WHI7

Compatibility : Compatible With Multiple Diesel Generator Brands

Contact Now

WHI7 Series---1400-2200KVA 4 Poles Brushless Alternator

As the best China 1400-2200KVA 4 Poles Brushless supplier,MING JIE provides quality 1400-2200KVA 4 Poles Brushless to global clients

    • ● Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
      ● Single or double bearings are available, options for all kinds of adaptors and coupling disc
      ● 12-end reconnectable winding terminals to get different voltages
      ● Standard “H” insulation class
      ● Convenient installation and maintenance for rotated diodes and adaptor connected bolts
      ● Standard sealed maintenance-free bearings

    Options

    • ● Air filter
      ● Droop CT
      ● PMG excitation system
      ● Winding RTD and bearing RTD
      ● IP23 or IP22 Protection
      ● Anti-condensation heater
      ● Winding protection thermistor and relay
      ● Double bearing transition joint

      • ALTERNATOR SPECIFICATION

      VOLTAGE 4 POLES 4 POLES
      50Hz 1500rpm 60Hz 1800rpm
      STAR-SERIES 380 400 415 416 440 480
      STAR-PARALLEL 190 200 208 208 220 240
      TRIANGLE-SERIES 220 230 240 240 254 277
      WHI 7B RATED CAPACITY (kVA) 1400 1460 1500 1690 1760 1810
      RATED POWER (kW) 1120 1168 1200 1352 1408 1448
      EFFICIENCY (%) 95.3 95.2 95.1 95.5 95.4 95.3
      WHI 7C RATED CAPACITY (kVA) 1550 1615 1660 1890 1970 2025
      RATED POWER (kW) 1240 1292 1328 1512 1576 1620
      EFFICIENCY (%) 95.7 95.6 95.5 95.9 95.8 95.6
      WHI 7D RATED CAPACITY (kVA) 1650 1720 1770 2015 2100 2160
      RATED POWER (kW) 1320 1376 1416 1612 1680 1728
      EFFICIENCY (%) 96.3 96.2 96.0 96.3 96.2 96.1
      WHI 7E RATED CAPACITY (kVA) 1900 1980 2035 2300 2395 2465
      RATED POWER (kW) 1520 1584 1628 1840 1916 1972
      EFFICIENCY (%) 96.5 96.1 96.1 96.3 96.3 96.2
      WHI 7F RATED CAPACITY (kVA) 2080 2170 2250 2600 2705 2785
      RATED POWER (kW) 1664 1736 1800 2080 2164 2228
      EFFICIENCY (%) 96.4 96.3 96.2 96.5 96.4 96.3
      WHI 7G RATED CAPACITY (kVA) 2200 2295 2360 2750 2860 2945
      RATED POWER (kW) 1760 1836 1888 2200 2288 2356
      EFFICIENCY (%) 96.0 95.9 95.9 96.1 96.0 95.9
      • The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less

      • than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H

      • class (125℃)

      • Packing and Shipping:

      • Product Packaging:
        Our Diesel Generator Spare Parts are carefully packaged to ensure they arrive in perfect condition.

      • Each part is wrapped in protective material and placed in a sturdy box with ample cushioning to prevent

      • any damage during transit.
        Shipping:
        We offer fast and reliable shipping for our Diesel Generator Spare Parts. Orders are processed promptly

      • and shipped out within 1-2 business days. We partner with reputable courier services to ensure timely

      • delivery to our customers. Tracking information will be provided so you can monitor the progress of your

      • shipment.


China 1400-2200KVA 4 Poles Brushless Alternator factory

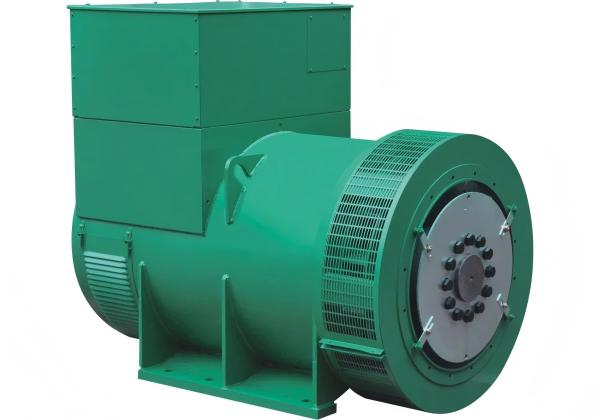

1400-2200KVA 4 Poles Brushless Alternator Images
